VGA to USB 3.0 Video Capture Card with Loop Out, 1080P 30FPS, Driver Free UVC UAC for Medical Imaging, Industrial Camera and Live Streaming
VGA to USB 3.0 Video Capture Card with Loop Out, 1080P 30FPS, Driver Free UVC UAC for Medical Imaging, Industrial Camera and Live Streaming
Couldn't load pickup availability
Product Overview

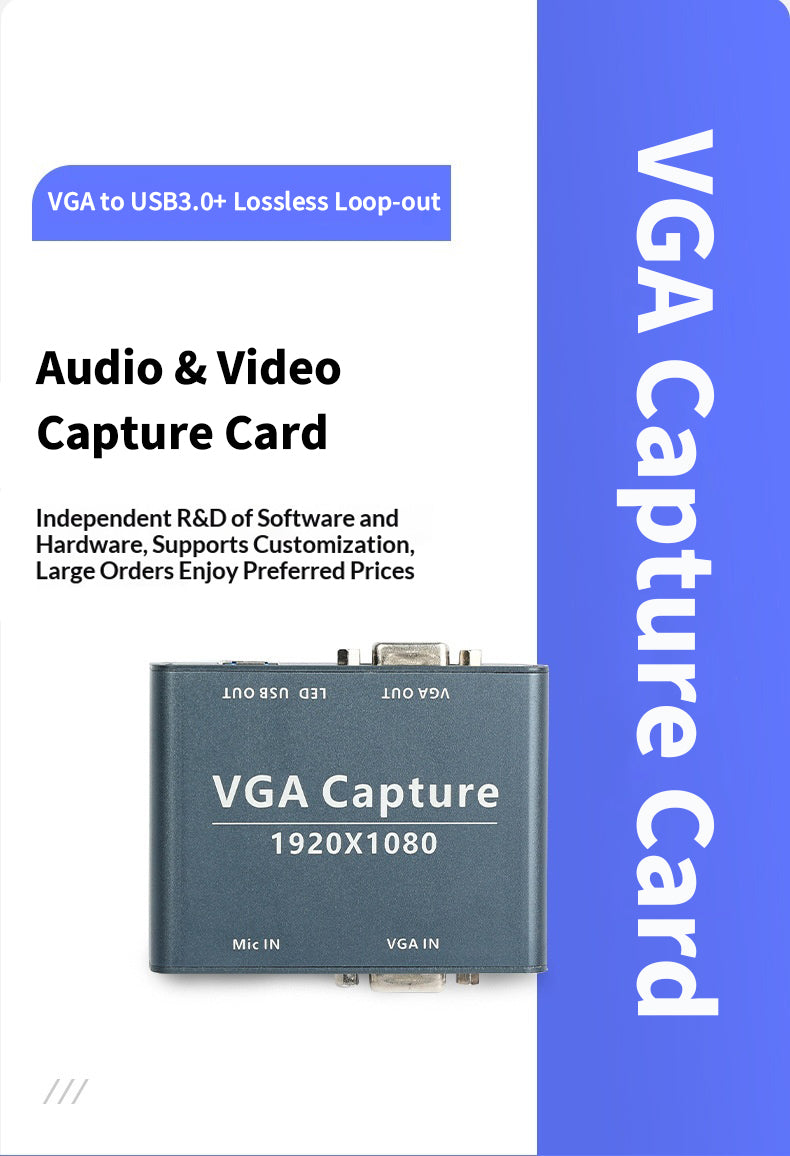

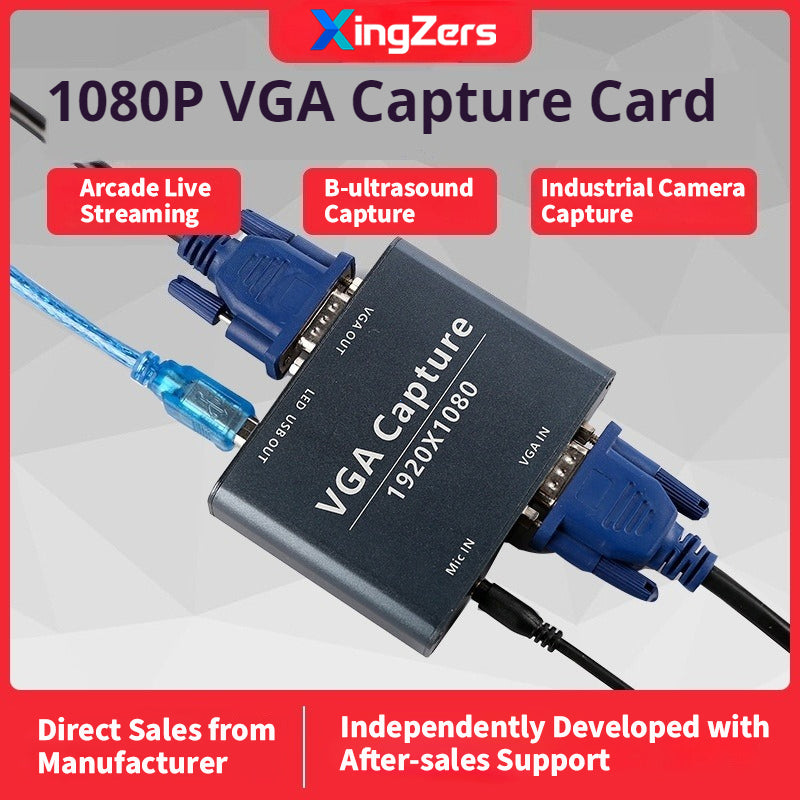

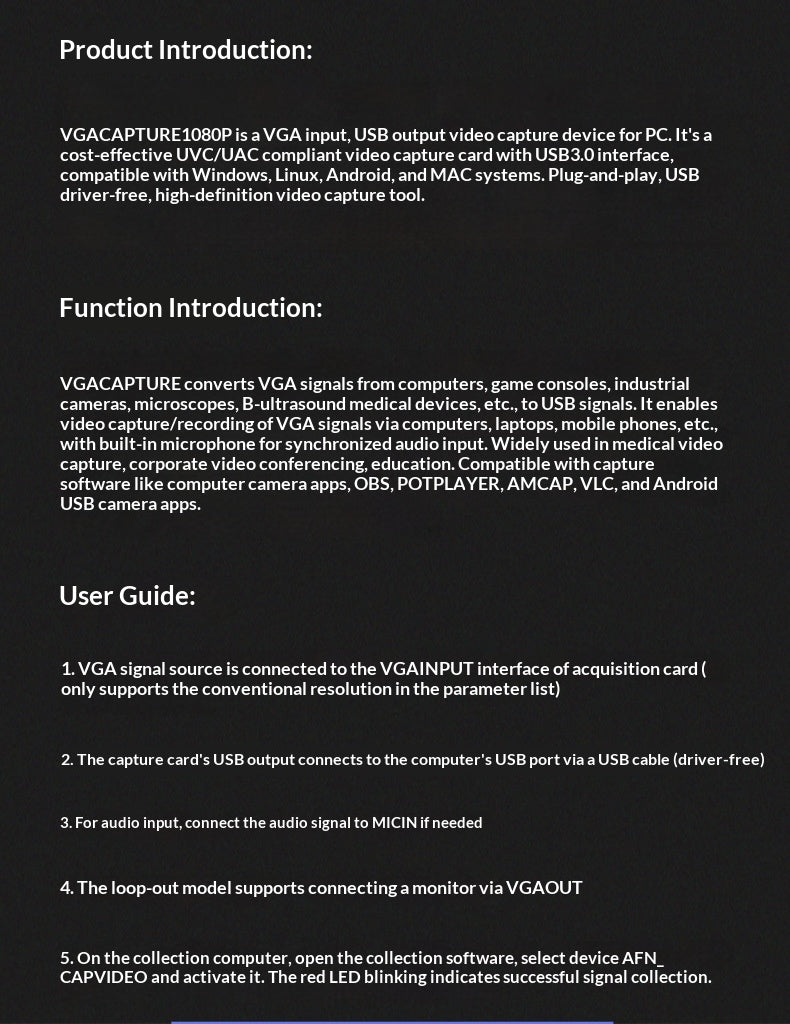

The VGA to USB 3.0 Video Capture Card is a compact and high performance audio video capture solution designed to convert VGA signals into USB video streams for computers and mobile devices.
It supports lossless VGA loop out, synchronized audio input, and driver free operation based on the UVC UAC standard.
With stable 1080P 30FPS and 720P 60FPS real time capture, this device is widely used in medical imaging systems, industrial cameras, ultrasound equipment, education and conference systems, and arcade or PC live streaming.
The product features self developed hardware and firmware, enabling OEM customization for PCB layout, functions, and large volume projects.
Key Features
• USB 3.0 High Speed Capture – Stable real time capture up to 1080P at 30FPS or 720P at 60FPS with low latency.

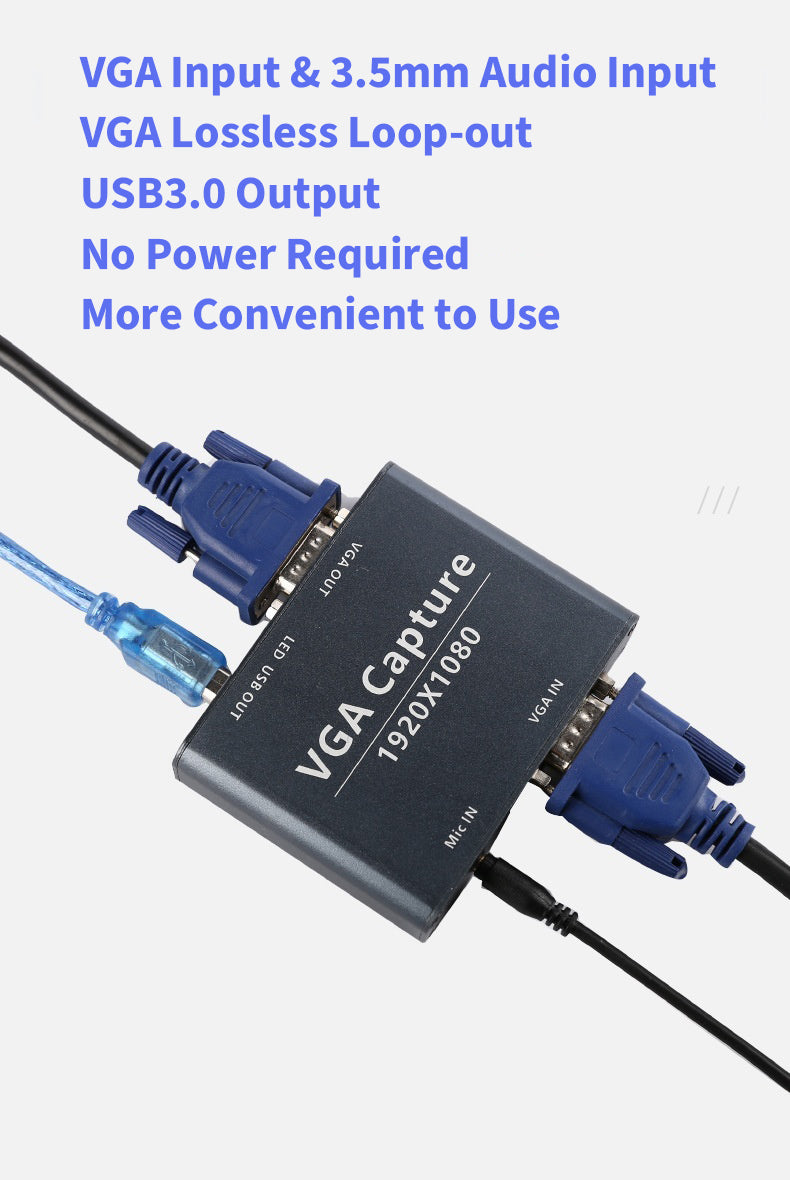

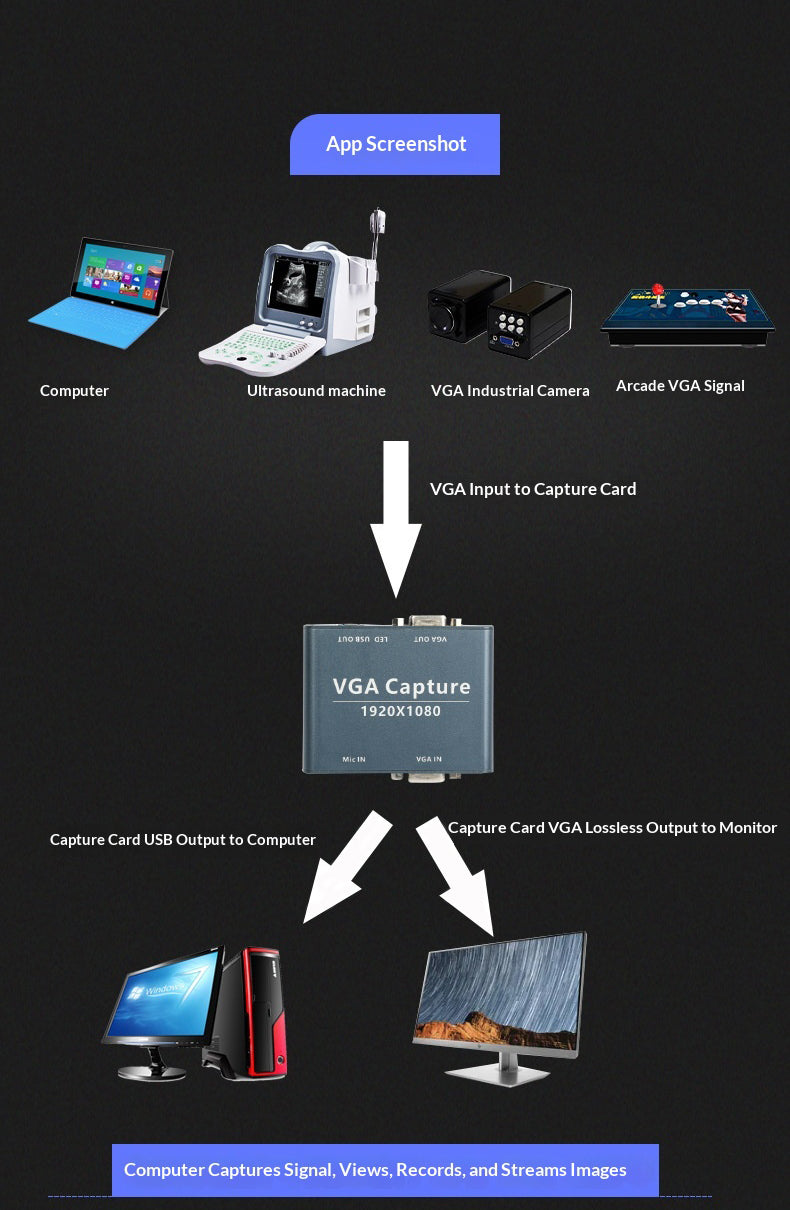

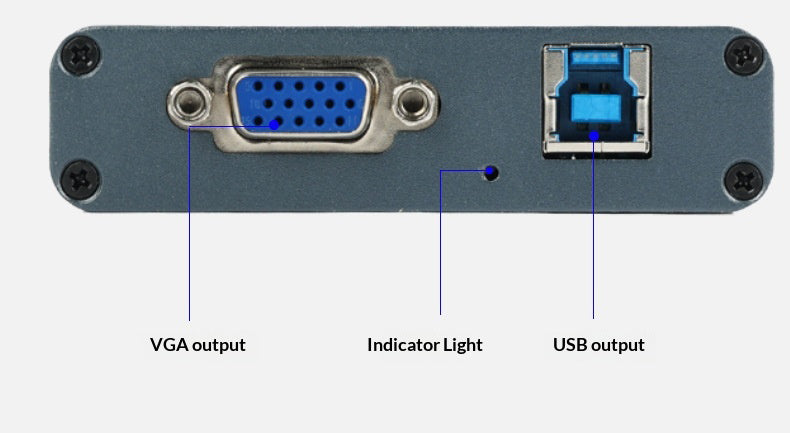

• Lossless VGA Loop Out – VGA output allows simultaneous display on a monitor while capturing the signal.
• Driver Free Plug and Play – Fully compliant with UVC and UAC, no driver installation required.
• Wide System Compatibility – Supports Windows, Linux, Android, and macOS.

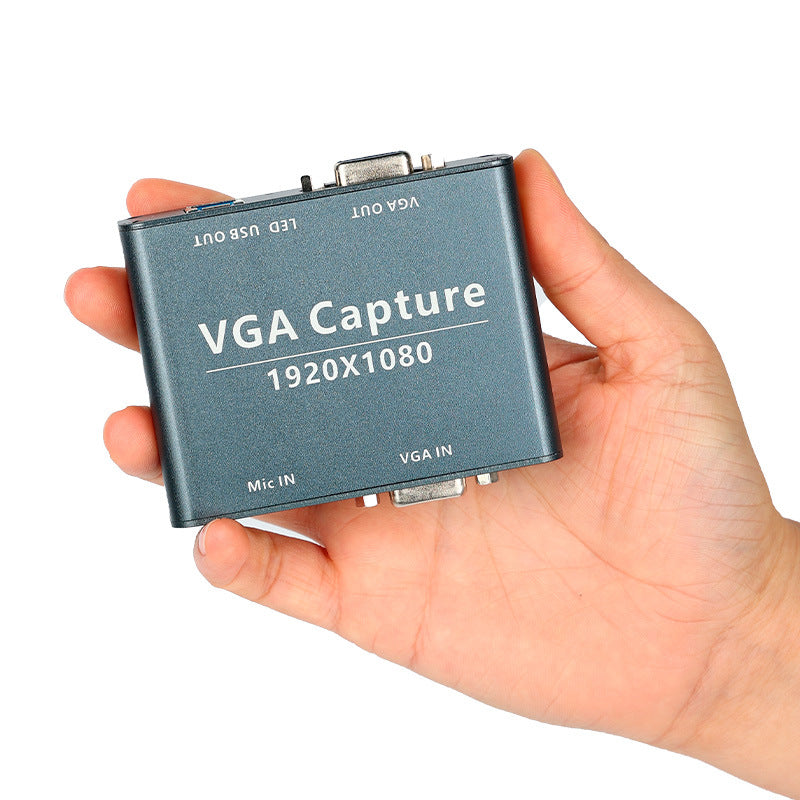

• Compact and Portable Design – Mini size and lightweight, easy to carry for business travel and on site use.
• Low Power Consumption – USB powered operation, no external power supply required, power consumption under 1.5 W.
• OEM Customization Supported – Hardware and software independently developed, supports custom functions and PCB design for bulk orders.

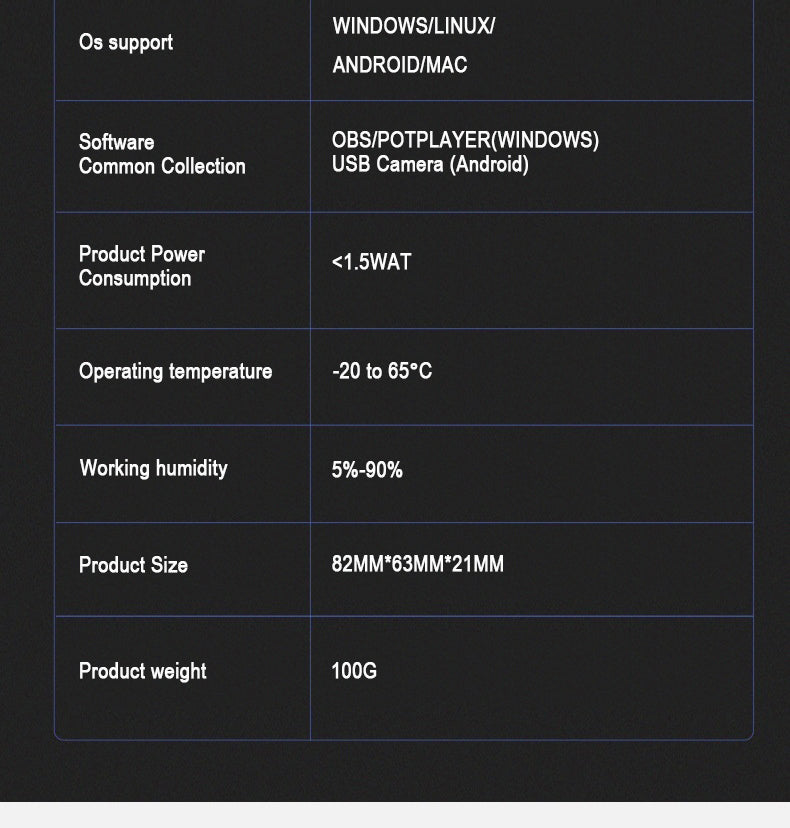

Product Specifications
| Item | Specification |
|---|---|
| Item Number | XZSCC-V2U-LO |
| Video Input | VGA |
| Audio Input | 3.5 mm Microphone Input |
| Video Output | USB 3.0 |
| VGA Loop Out | Supported |
| Video Capture Resolution | 1920×1080, 1600×1200, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, 640×480 |
| Frame Rate | Adjustable 5 to 60 FPS |
| Video Audio Protocol | UVC UAC |
| Driver Requirement | Driver Free |
| Supported Systems | Windows, Linux, Android, macOS |
| Compatible Software | OBS, PotPlayer, AMCap, VLC, USB Camera Apps |
| Power Supply | USB Powered |
| Power Consumption | Less than 1.5 W |
| Operating Temperature | Minus 20°C to 65°C |
| Operating Humidity | 5 percent to 90 percent |
| Product Size | 82 × 63 × 21 mm |
| Product Weight | 100 g |
Typical Applications
• Medical Imaging Systems – Ultrasound equipment, diagnostic devices, and other medical VGA video sources.
• Industrial Cameras and Microscopes – VGA output industrial cameras, inspection systems, and laboratory imaging.
• Enterprise Video Conferencing and Education – Conference rooms, training systems, and classroom video capture.
• Arcade Machines and PC Video Capture – Arcade systems, legacy VGA devices, and computer screen capture.
• Live Streaming and Video Recording – Real time capture for streaming, recording, and content creation.
