1080P Analog AV CVBS S Video to USB and USB Type C Capture Module UVC Driver Free
1080P Analog AV CVBS S Video to USB and USB Type C Capture Module UVC Driver Free
Couldn't load pickup availability
Product Description

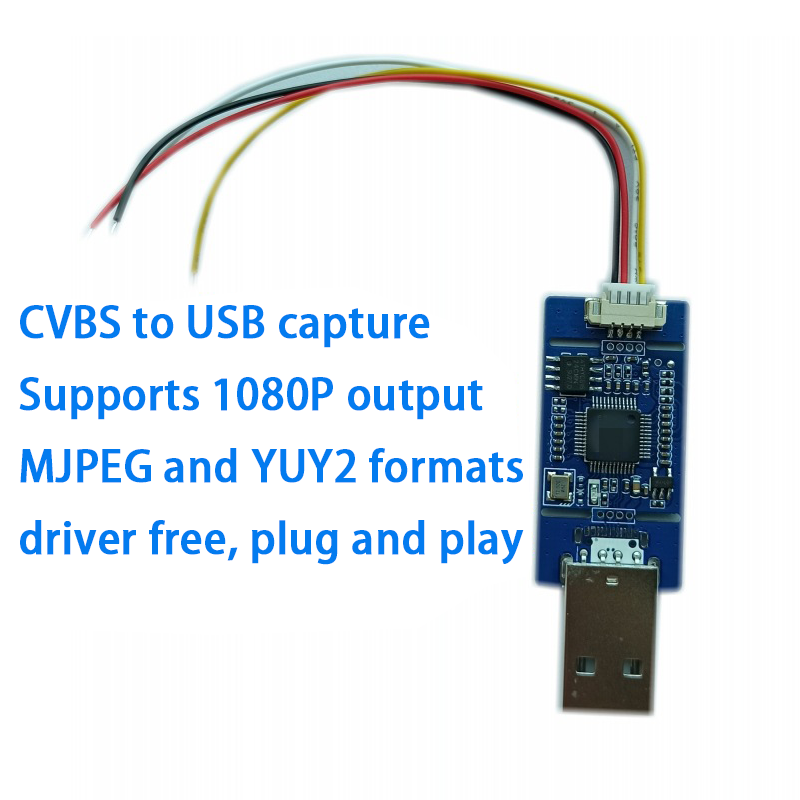

This product is an analog video to USB capture module designed to convert AV CVBS and S Video signals into a digital USB video stream.
It complies with the UVC standard and is automatically recognized by the system as a USB camera without driver installation.

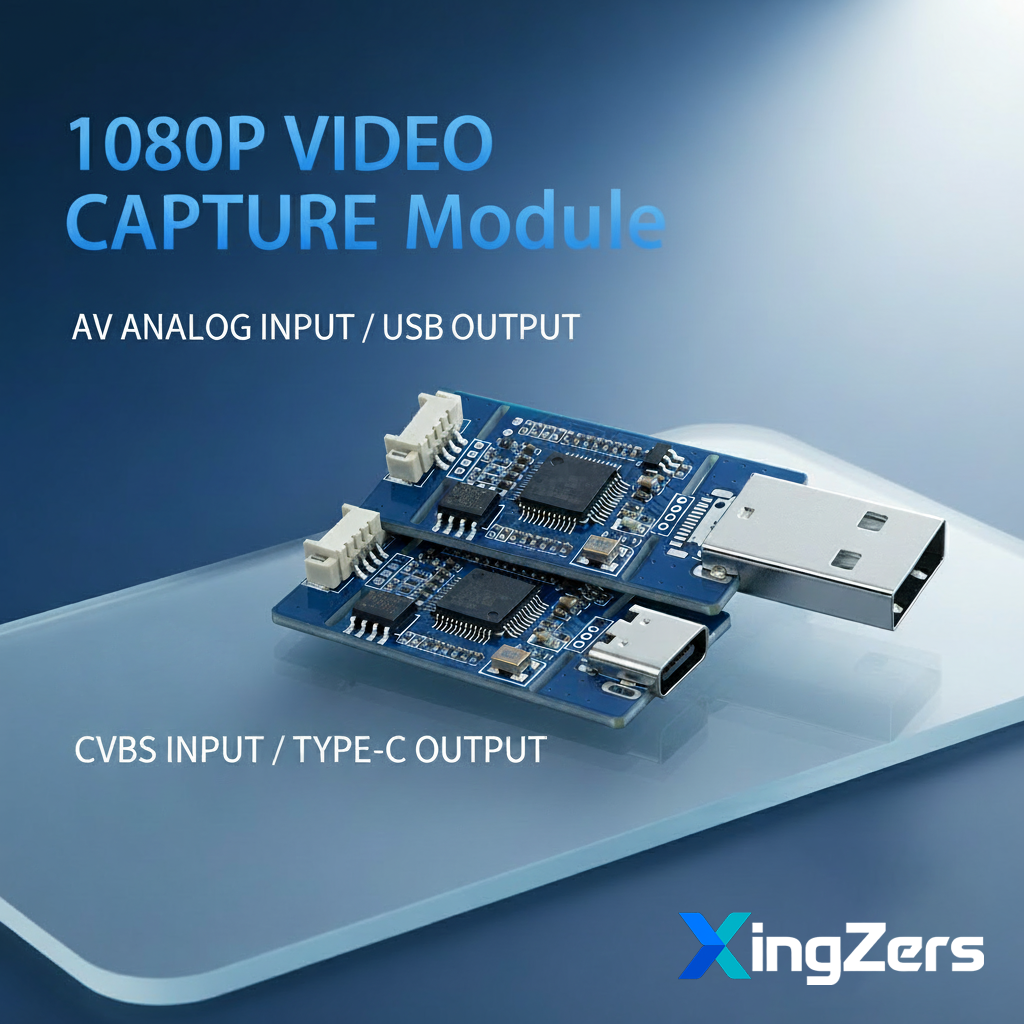

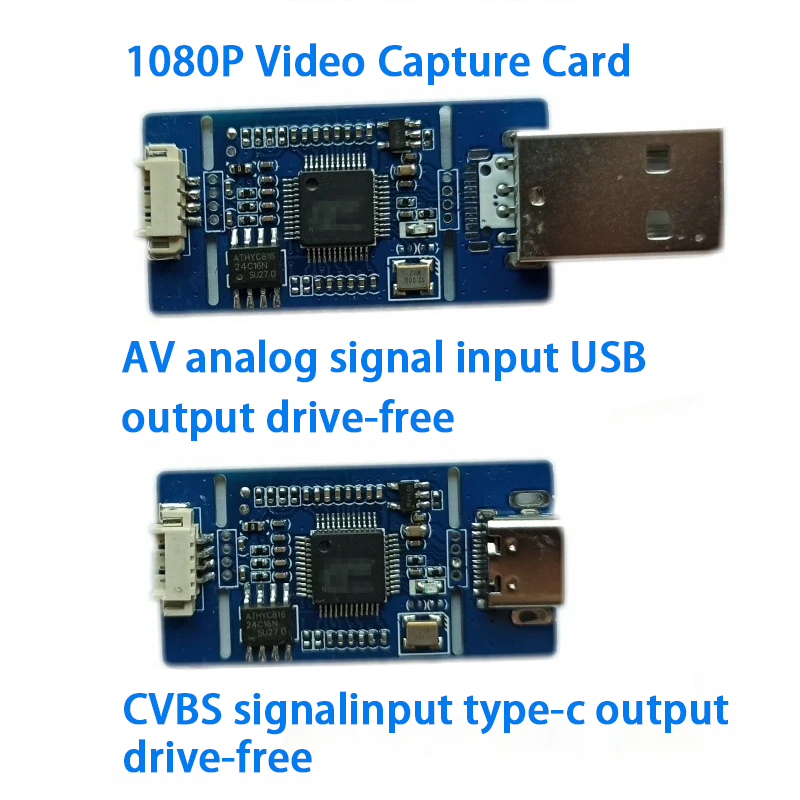

This product listing includes two interface versions.
Customers can select the interface based on their actual usage requirements.

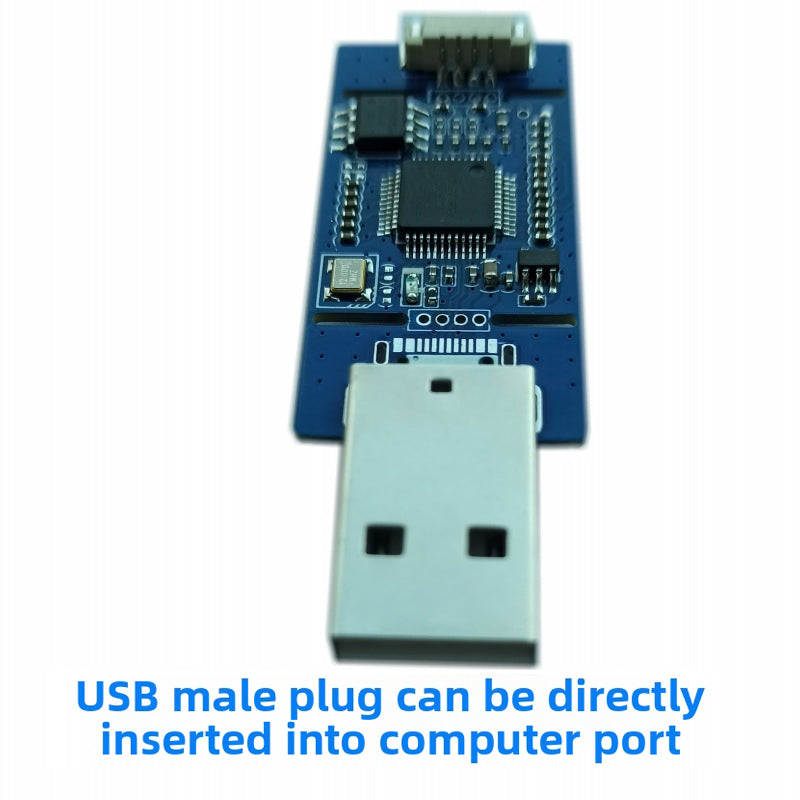

The USB interface version is intended for direct connection to computers and industrial hosts.

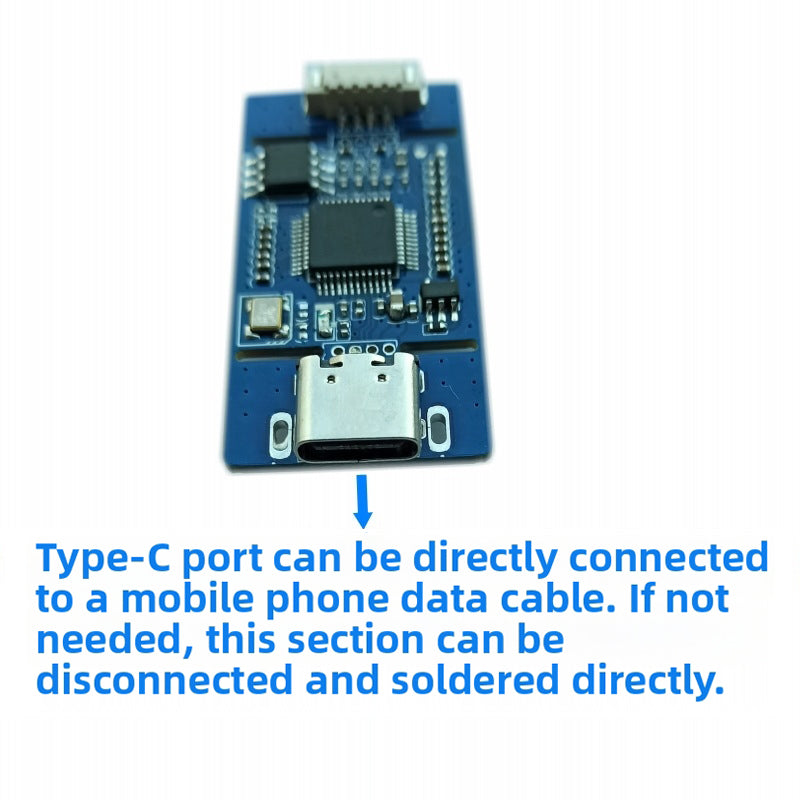

The USB Type C interface version is suitable for mobile devices and embedded systems.
Both versions provide identical video performance, support up to 1080P output, operate on USB 5V power, and are compatible with Windows, Android, and Linux systems.
Key Features
• AV CVBS and S Video analog input – Supports common analog video sources
• USB and USB Type C output options – Choose the interface according to your device
• UVC compliant design – Recognized as a USB camera without driver installation
• Up to 1080P video output – Suitable for recording and display applications
• MJPEG and YUY2 video formats – Compatible with mainstream capture software
• PAL and NTSC auto detection – No manual video standard switching required
• USB 5V powered – No external power supply needed
• Compact PCB structure – Ideal for embedded system integration
• OEM customization support – PCB layout and functions can be adjusted if required
Interface Options
| Interface Version | Item Number | Description |
|---|---|---|
| USB Interface | XZSCC-C2U（USB） | Standard USB interface for direct connection to PC or industrial host |
| USB Type C Interface | XZSCC-C2T（Type C） | Type C interface for mobile devices and embedded systems |
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog to USB Video Capture Module |
| Video Input | AV CVBS S Video |
| Video Output | USB or USB Type C |
| Item Number | XZSCC-C2U（USB）, XZSCC-C2T（Type C） |
| Max Resolution | 1920 × 1080 |
| Frame Rate | 1080P 30fps, 720P 60fps |
| Video Format | MJPEG YUY2 |
| Video Standard | PAL NTSC Auto Detection |
| USB Protocol | UVC |
| Driver Requirement | None |
| Power Supply | USB 5V |
| Supported Systems | Windows Android Linux |

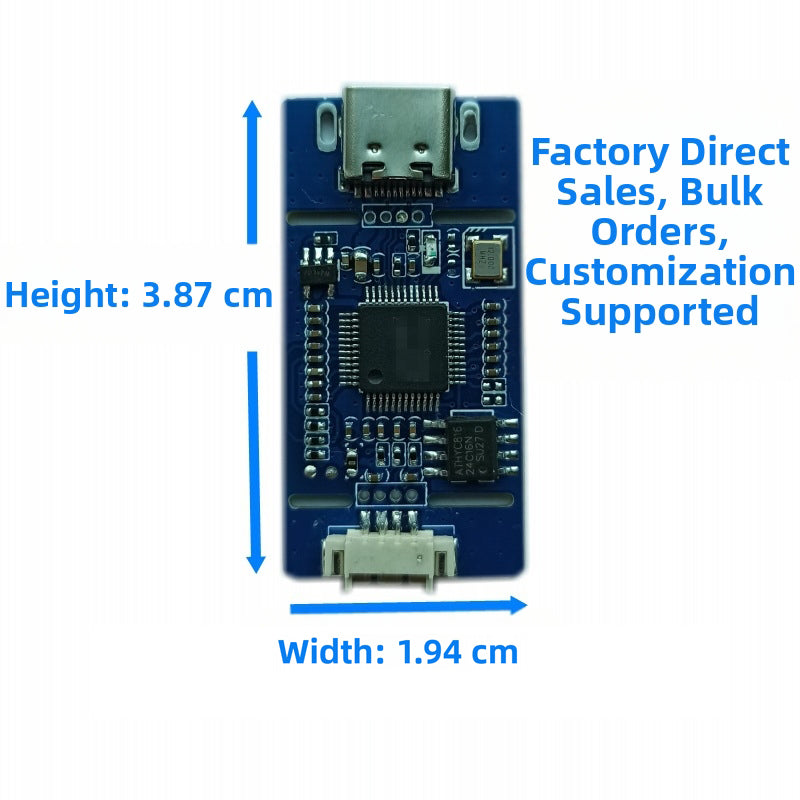

| PCB Size | Approx 3.87 cm × 1.94 cm |
| OEM Support | Yes |
Typical Applications
• Medical Imaging Systems – Ultrasound equipment, diagnostic devices, and other analog video sources
• Industrial Inspection Systems – Industrial cameras, testing equipment, and monitoring devices
• Embedded Systems – Linux and Android based platforms requiring analog video capture
• Legacy AV Digitization – Converting traditional CVBS video sources to USB
• Video Recording and Monitoring – Capture and display analog video on modern systems
• Education and Demonstration Equipment – Teaching systems and presentation setups
